Product Zoom 360

1 · Installation

Two ways to install — via Composer or by uploading the app folder. Both end with the same Magento CLI steps.

System requirements

• Magento 2.3.x / 2.4.x installed and working
• PHP, MySQL/MariaDB and web server meeting Magento 2 system requirements
• SSH access to run Magento CLI commands

Method 1 — Install via Composer (recommended)

1. Open a terminal in your Magento 2 root directory and require the package:

   composer require magepow/productzoom360

2. Run the Magento setup upgrade:

   php bin/magento setup:upgrade

3. Deploy static content (production mode):

   php bin/magento setup:static-content:deploy -f

4. Flush the cache:

   php bin/magento cache:flush

Method 2 — Manual install (upload app folder)

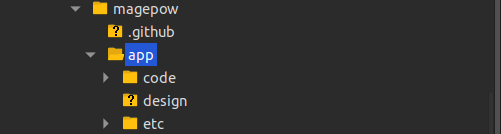

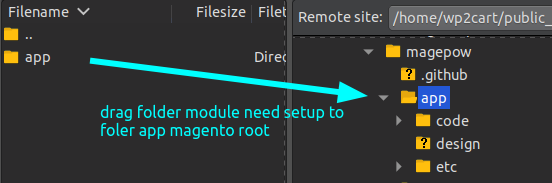

1. Download the extension package and unzip it. Upload the app folder to your Magento 2 root so it merges with the existing app directory.
2. Run the following commands from the Magento 2 root:

   php bin/magento setup:upgrade
   php bin/magento setup:static-content:deploy -f
   php bin/magento cache:flush

3. Log out of the Admin panel and log back in to refresh access permissions, then clear the cache under System > Cache Management.

2 · Configuration & Usage

All settings live in the Magento Admin panel. Screenshots below match the default Admin theme.

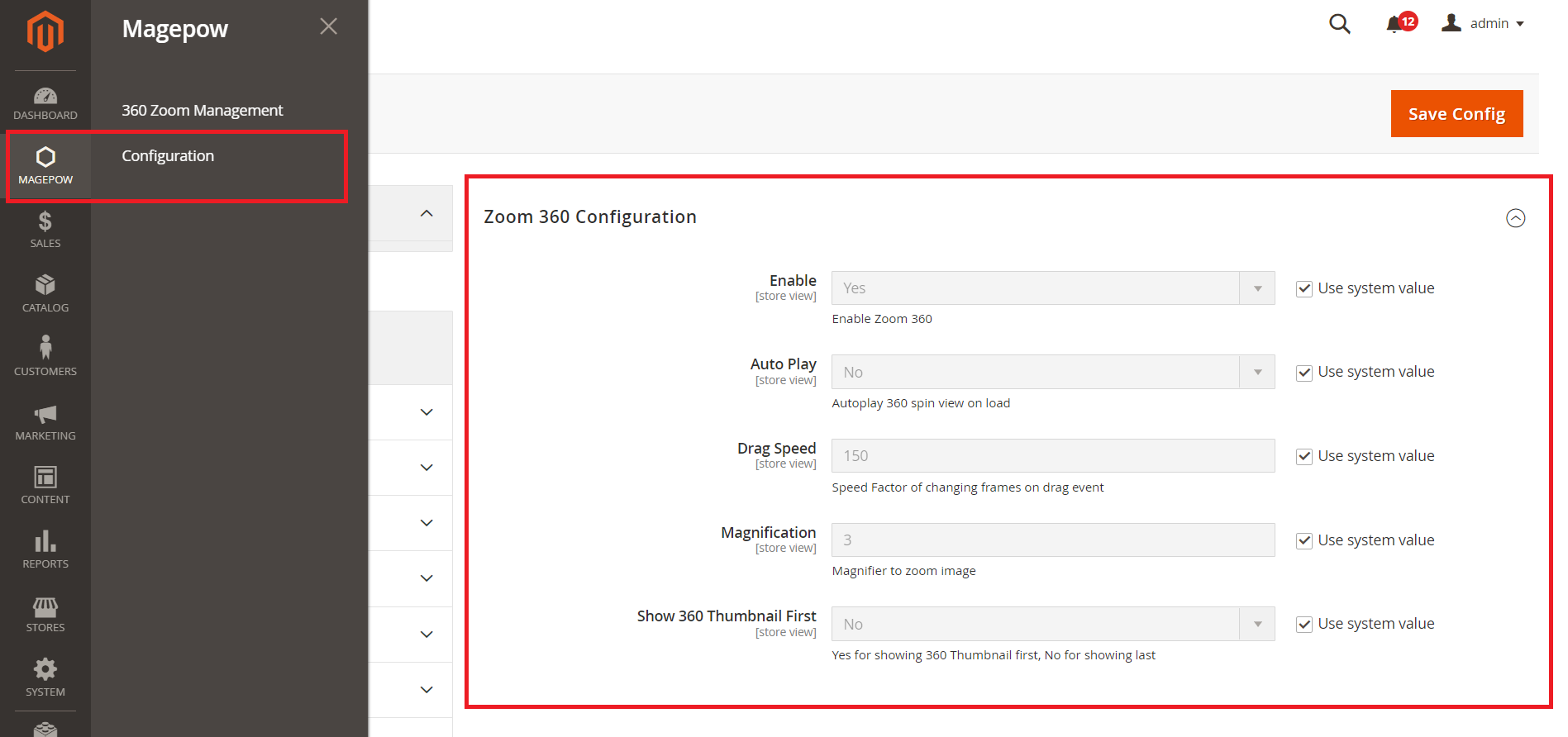

1 - Zoom 360 Configuration

In Admin Panel > Magepow > Configuration

• Enable: Yes to turn on. No to turn off the extension.
• Auto Play: 360 view of product will spin automatically after page load.
• Drag Speed: Rotation speed when using mouse to drag on 360 view.
• Magnification: Zoom Factor of Magnifier.
• Show 360 Thumbnail First: Yes to put the 360 thumbnail before the product thumbnails. Not to put it last.

2 - Set 360 View For Product

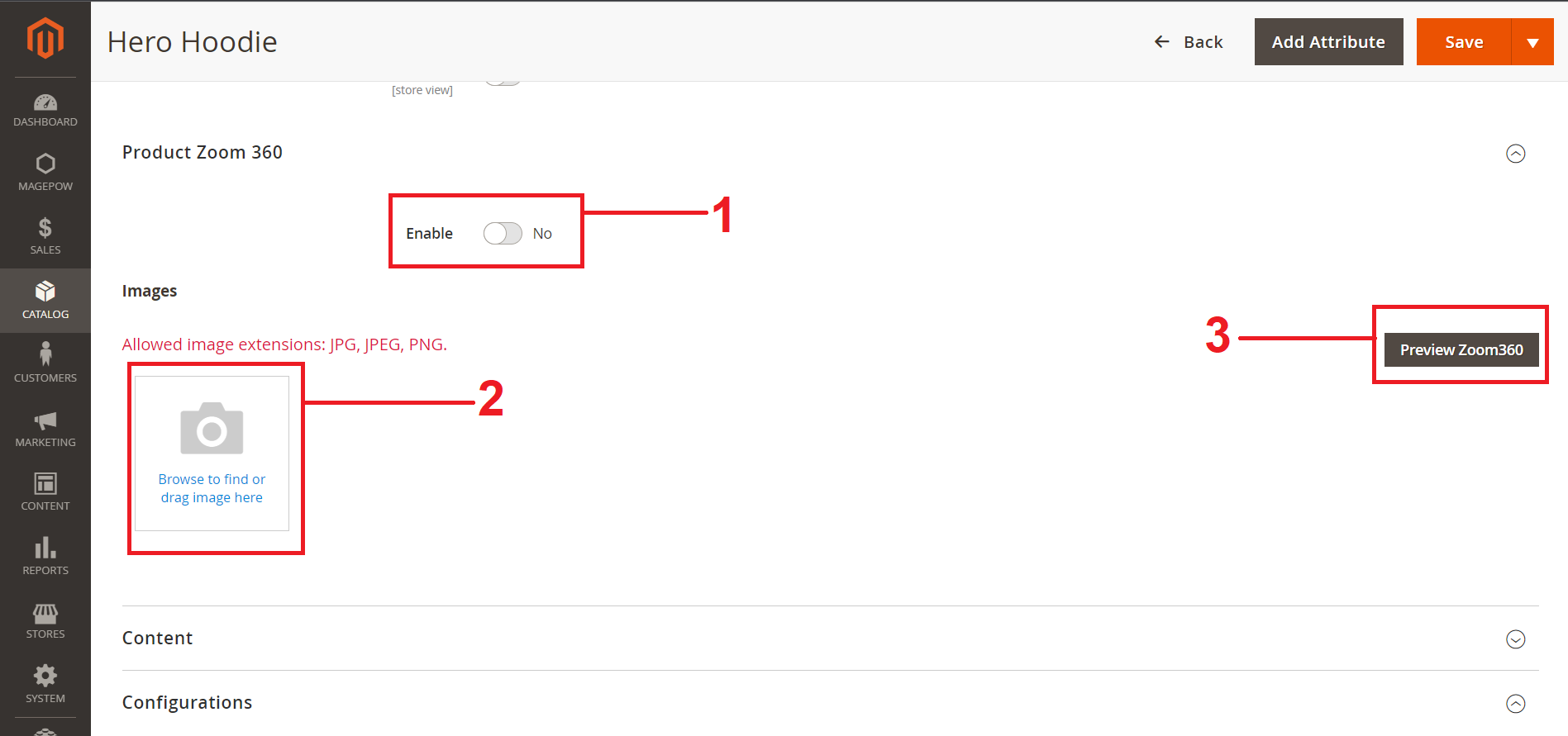

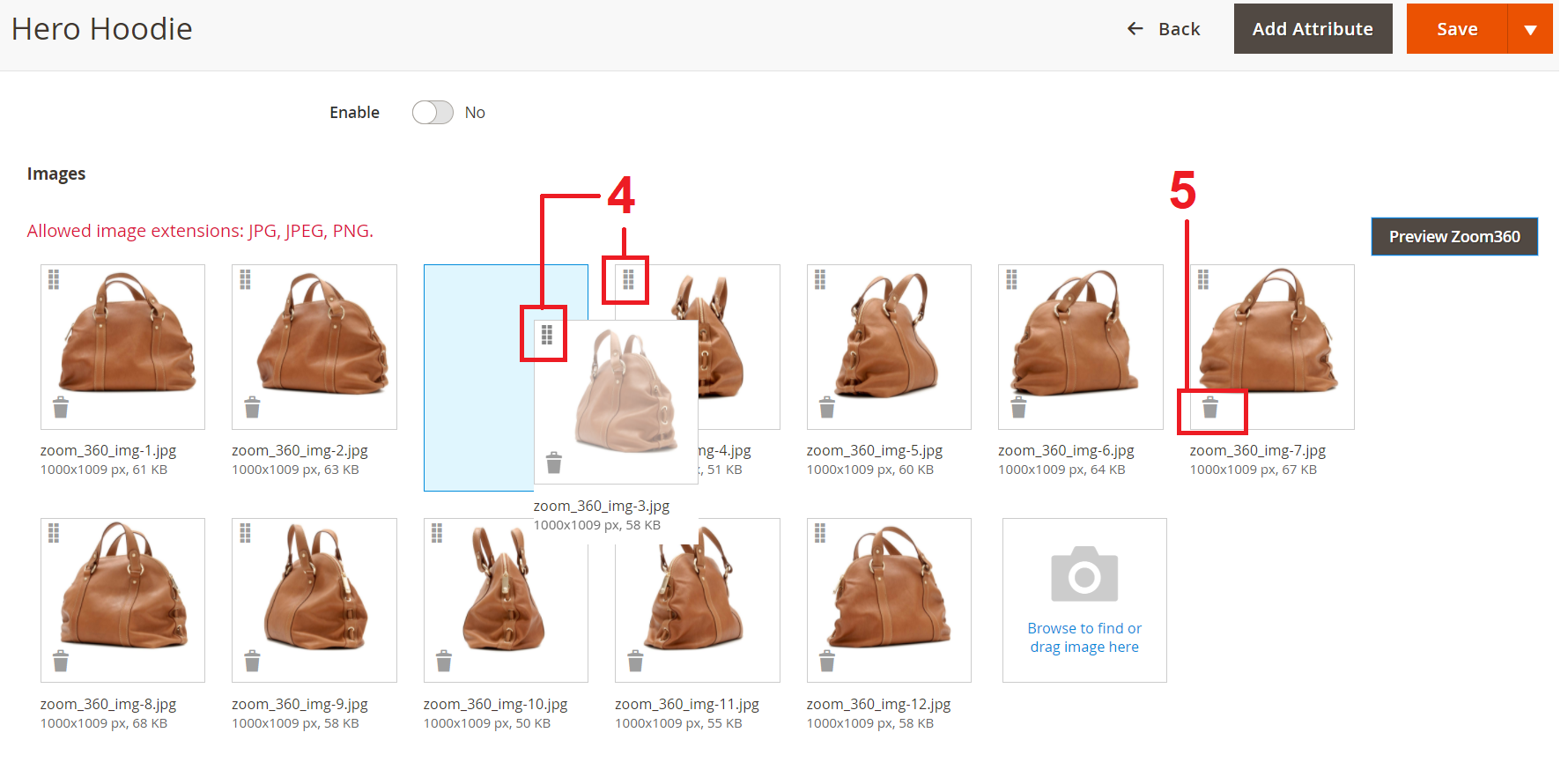

Go to product edit page by Admin Panel > Catalog > Products > Product edit page. Example below is the product edit page of a product called Hero Hoodie. Then scroll down to the Product Zoom 360 tab.

• 1. Enable: Yes to display 360 view on product page (Enable/Disable in Configuration have higher priority).
• 2. Images: Load images for 360 view here.
• 3. Preview Zoom360: See 360 view after load images.

• 4. Sorting: Drag and drop to sort images order.
• 5. Deleting: Delete image.

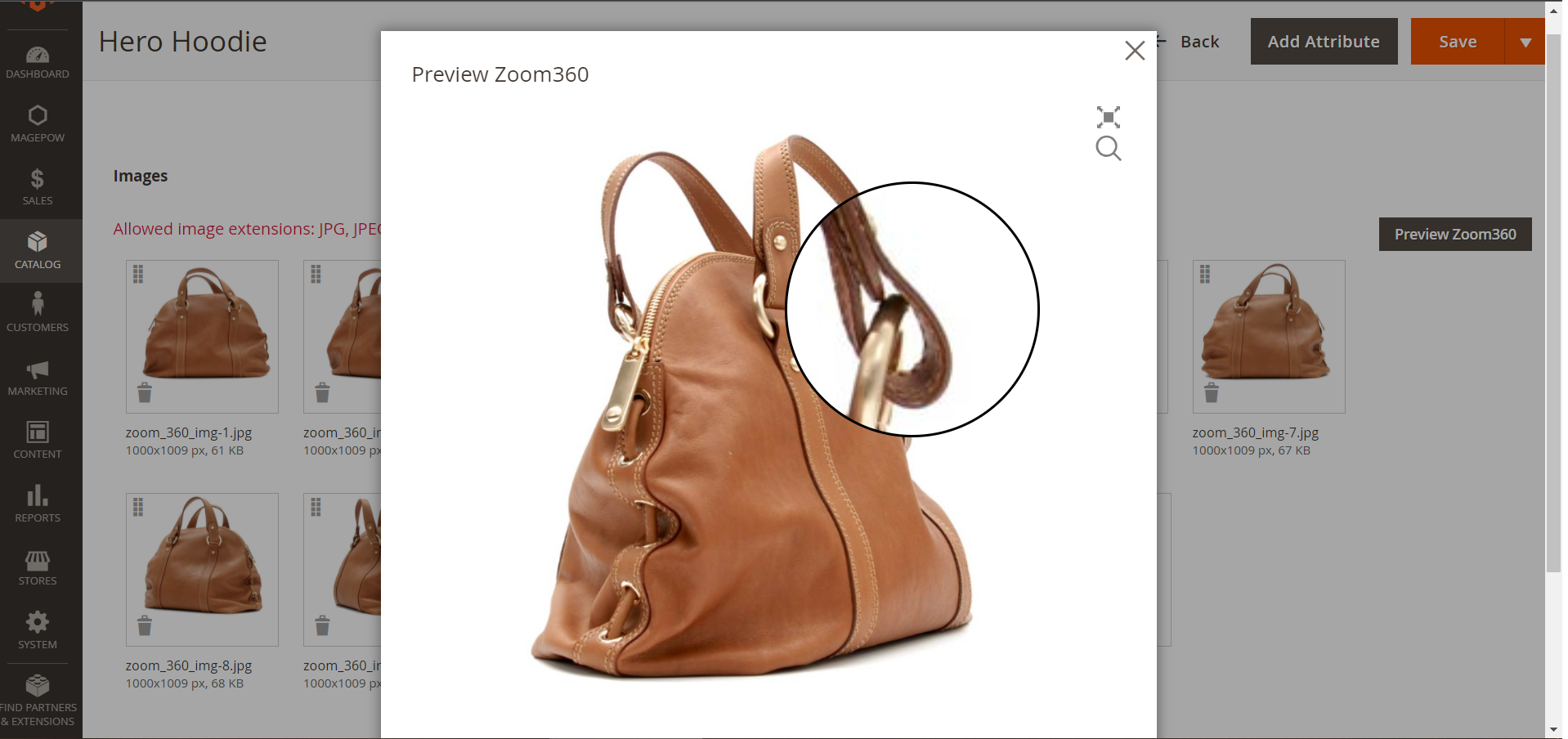

Click Preview Zoom360 to see the result.

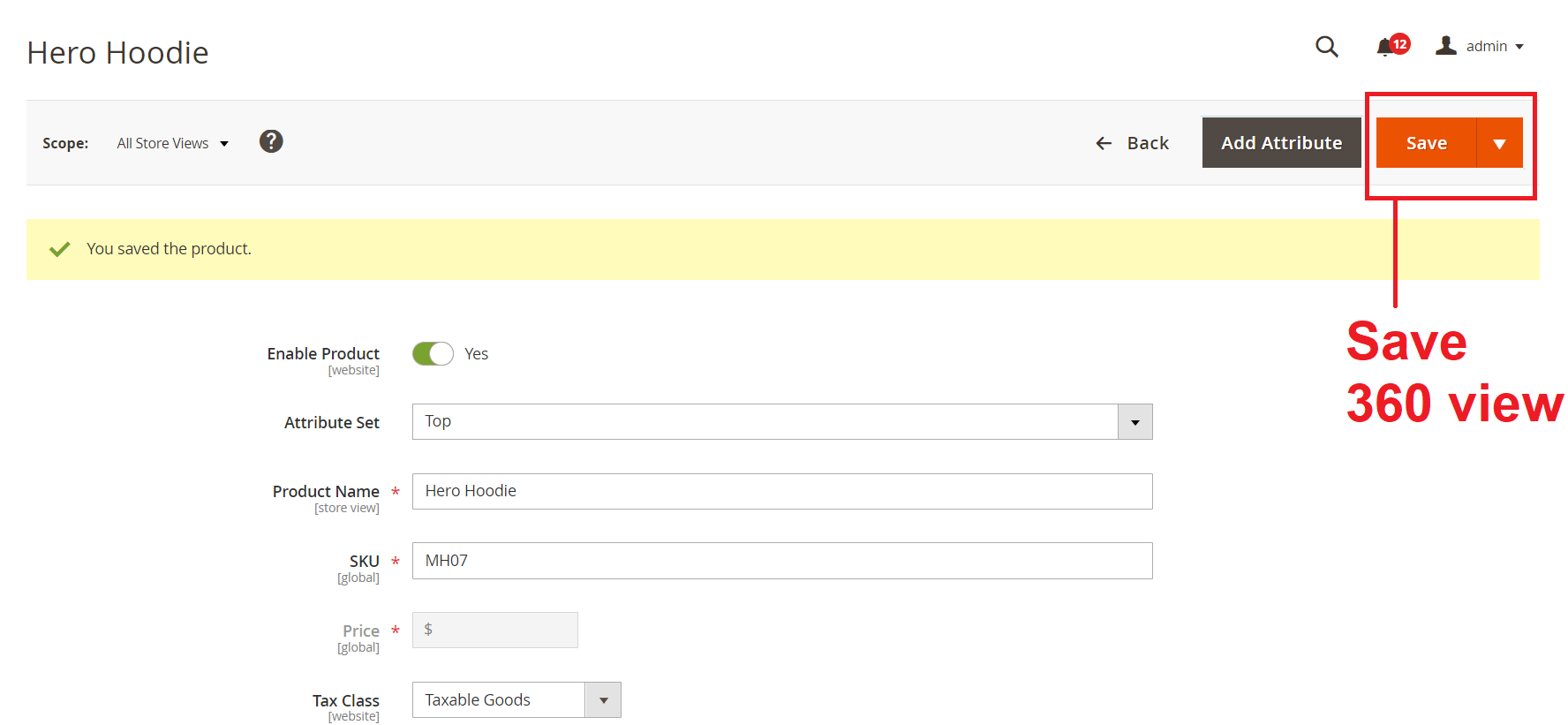

After loading all images, save the product to save the 360 view.

3 - 360 View Management

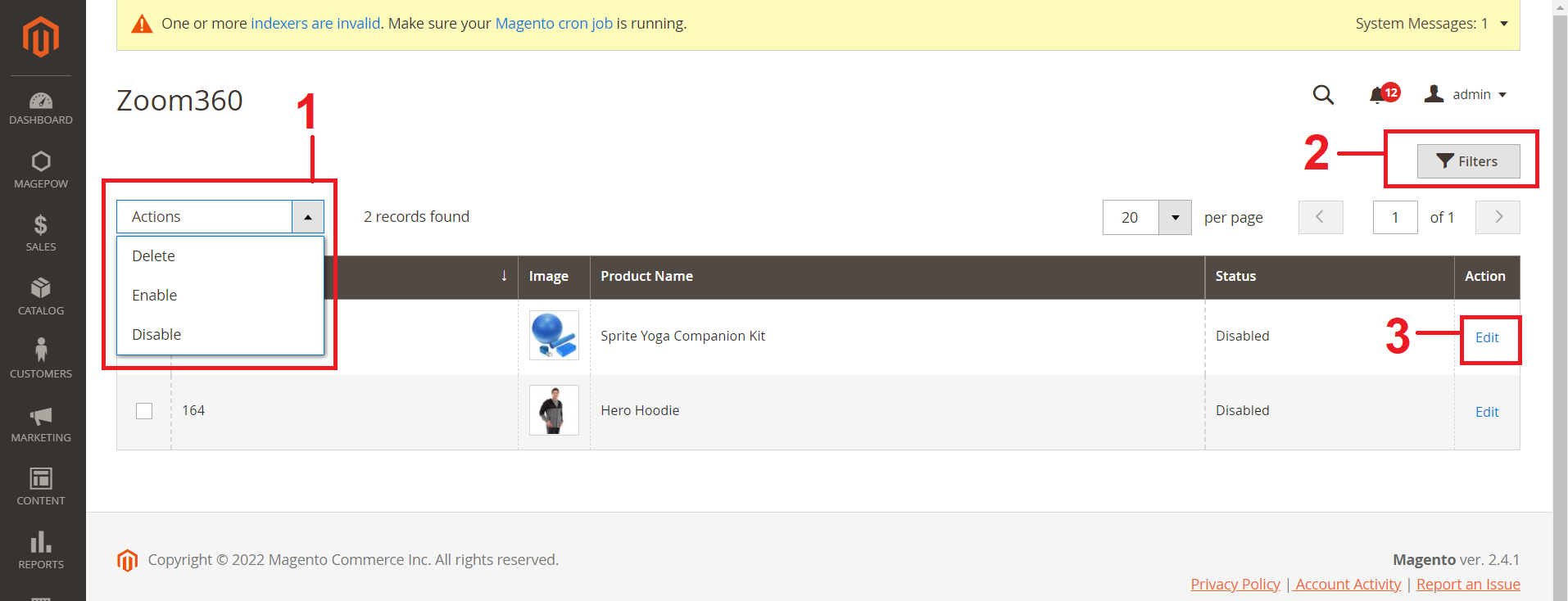

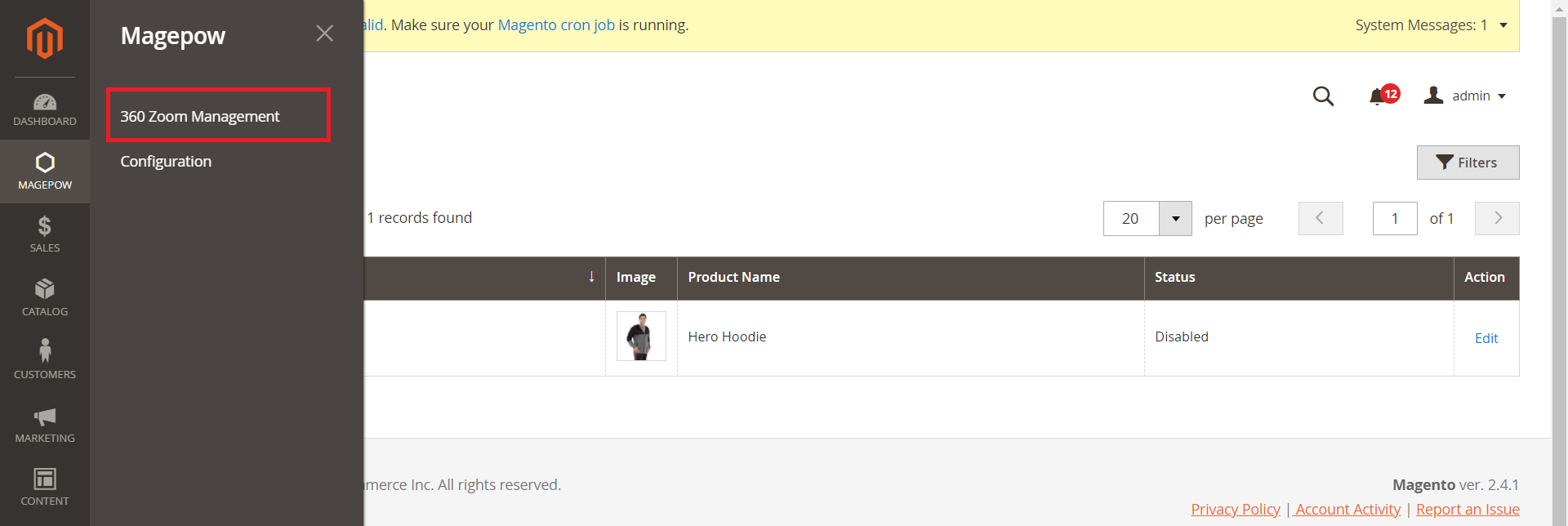

In Admin Panel > Magepow > 360 Zoom Management

• 1. Mass Action:

  - Delete: Remove all images in 360 degree view in selected products and set Enable to No.

  - Enable: Display 360 degree view on selected product.

  - Disable: Disable 360 degree view on selected product.

• 2. Filters:

  - Product Id: Filter by product id.

  - Product Name: Filter by product name.

  - Status: Filter by 360 view status.

• 3. Edit: Navigate to Product edit page.

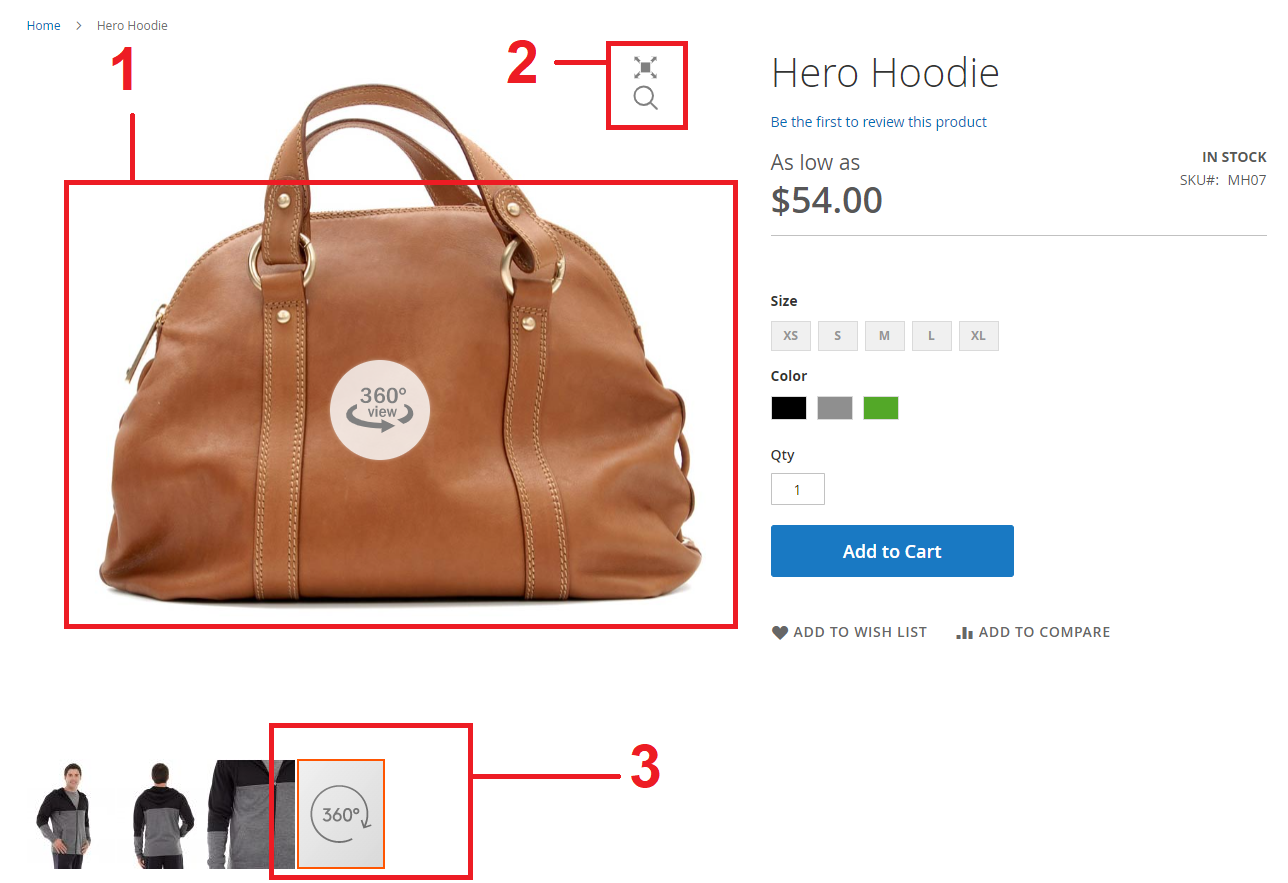

4 - Storefront Product Page Result

Below is the front page of the Hero Hoodie product.

• 1. 360 degree view.
• 2. Full screen mode and Magnifier.
• 3. Thumbnail of 360 view.

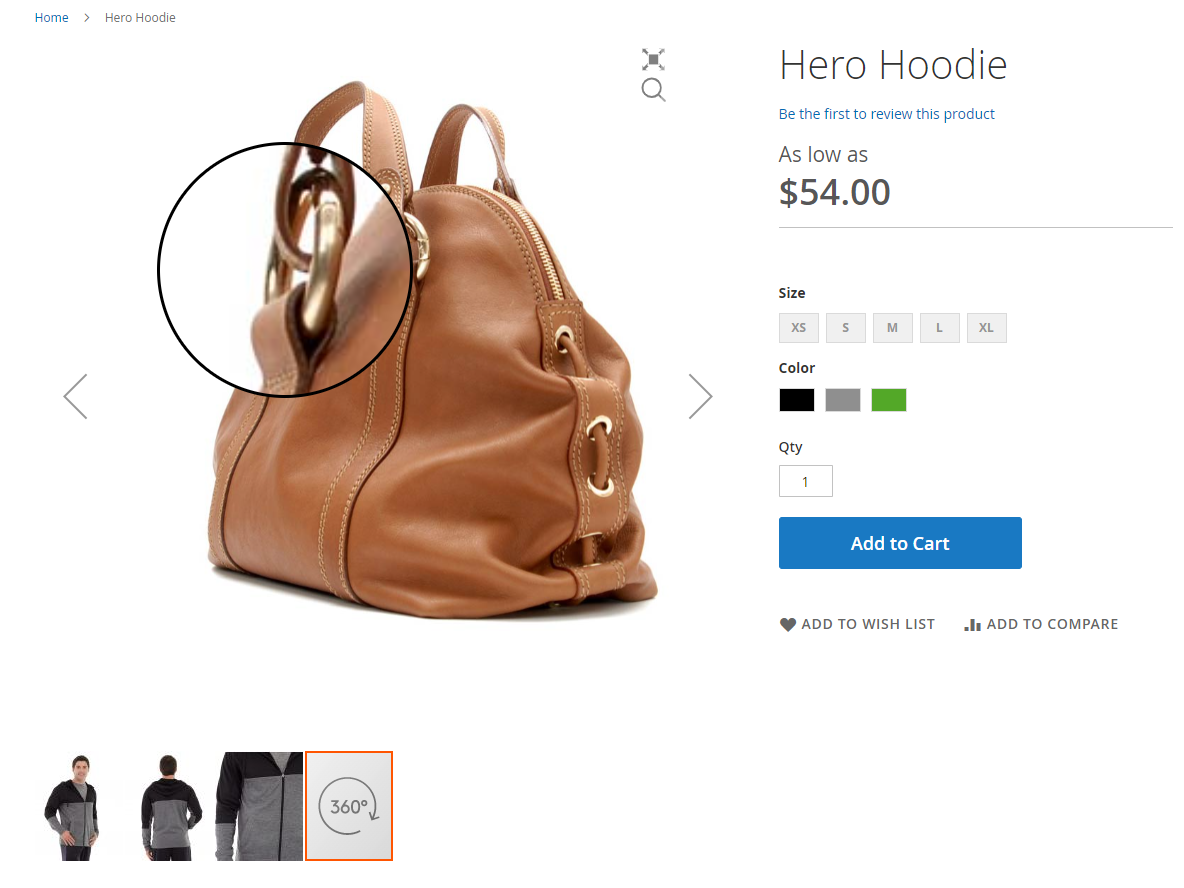

Using Magnifier:

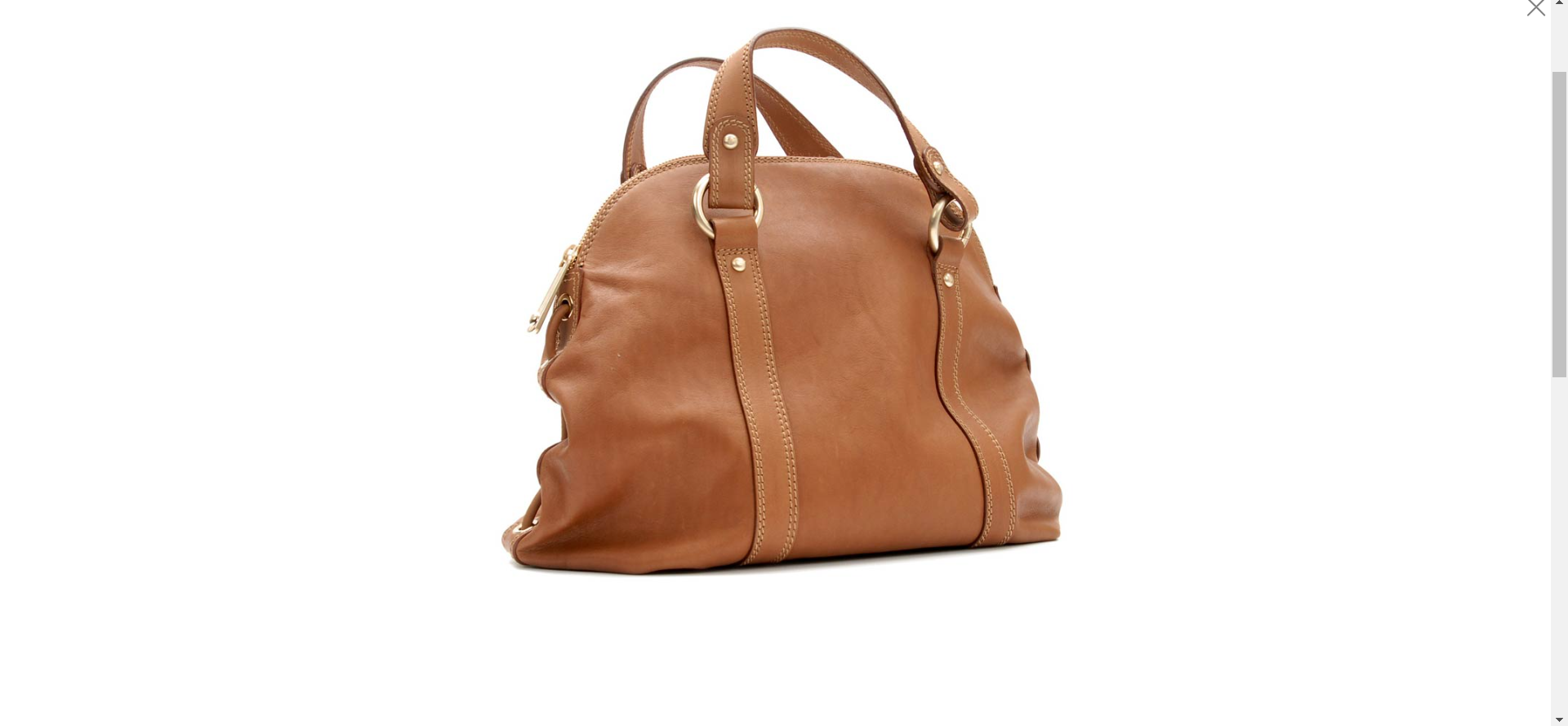

Enter Full screen mode:

3 · Support

Found a bug or need customization? Contact us — we usually reply within 24–48 hours.

Need help?

• Ticket support: support.magepow.com — we reply within 24–48 hours (usually much faster). Please include your Magento version, extension version and screenshots/error messages.
• Documentation: docs.magepow.com
• Video tutorials: Magepow on YouTube

Bug reports

If you find a bug, please report it via the ticket system with steps to reproduce, expected vs. actual behavior, and any relevant logs (var/log/system.log, var/log/exception.log).
